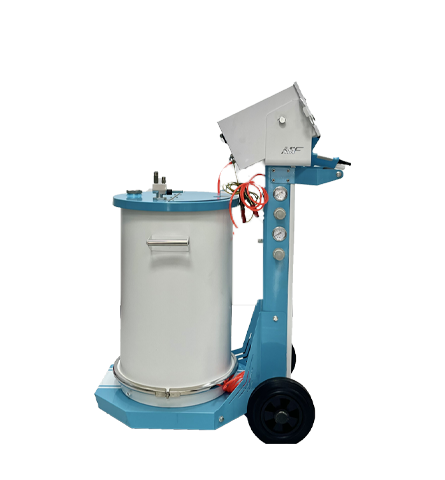

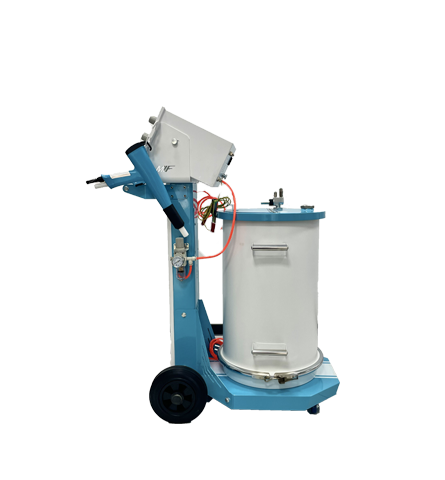

The M20 Auto Spray Gun is a cost-effective, compact entry-level automatic coating solution. Optimized for core functions, it delivers reliable transfer efficiency and consistent finish quality while significantly reducing the initial investment for automation, making it ideal for small to medium-scale production lines or first-time automation users.

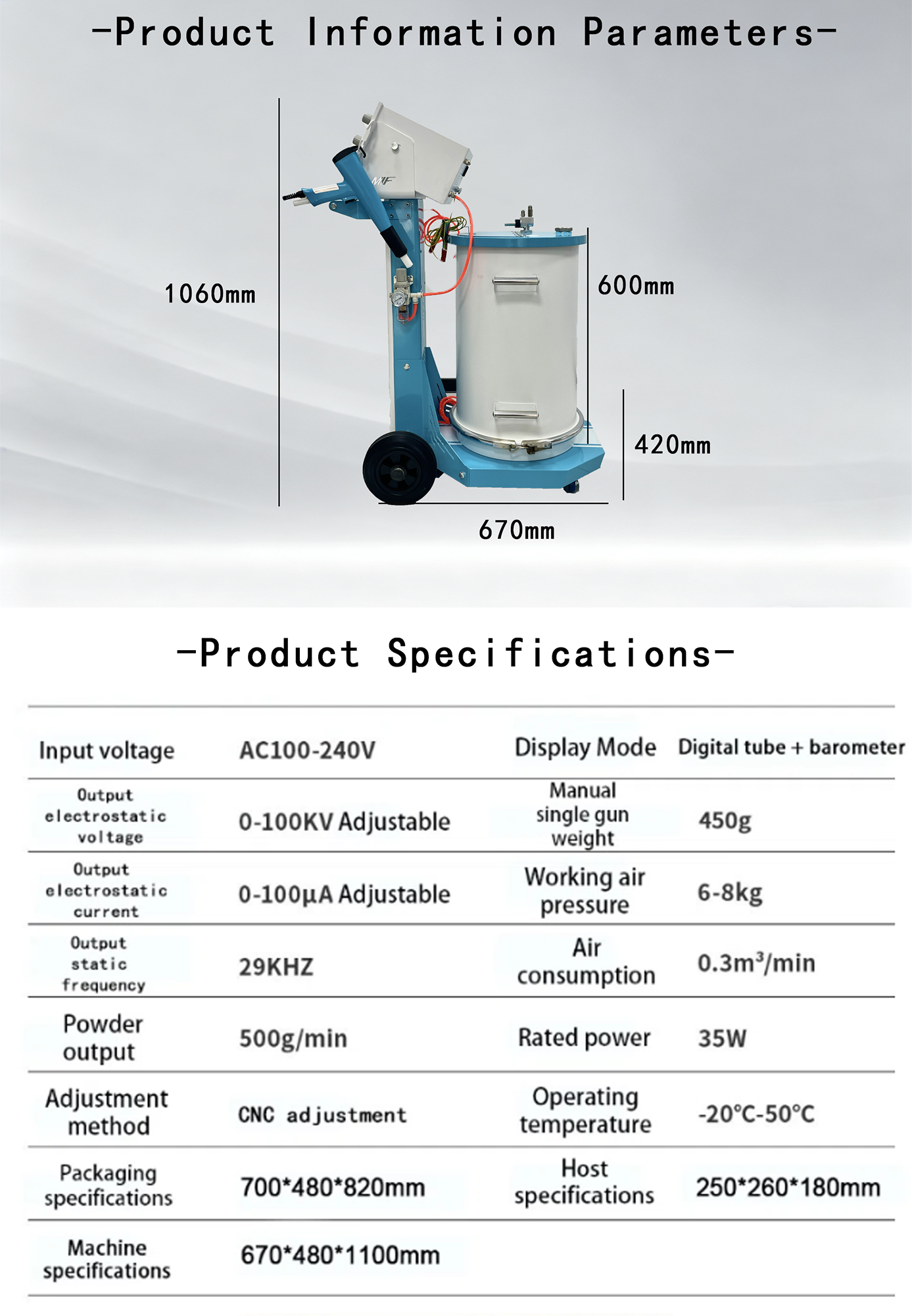

| Input voltage: | AC100-240V |
| Input frequency: | 50Hz |
| Rated power: | 35W |
| Output: | 0-105kV |
| Powder output: | 500g/min |
| Powder loading rate: | 0.75% |
| Operating air pressure: | 6-8kg |
| Air consumption: | 0.2m³/min |
| Control: | CNC |
| Display: | LCD |
| Operating temperature: | -20°C-50°C |
| Machine dimensions: | 420*530*1070mm |
