Detailed Introduction:

Okay, so we know electrostatic powder coating gives tough, beautiful, eco-friendly finishes. But how does that dry powder actually stick to the metal (or wood!) before it even hits the oven? It’s not magic, but it is pretty cool science – let’s break it down in plain English.

Think "Opposites Attract"... Big Time!

The whole game relies on static electricity, like when you rub a balloon on your hair and it sticks to the wall. Here’s the play-by-play:

1. The Powder Gets a Charge:

• The "Zapper" Way (Corona Charging - Most Common): The gun has a tiny electrode (like a little lightning rod) hooked up to a very high-voltage power supply (tens of thousands of volts!). This creates a small, intense electrical field at the tip of the gun. As the powder particles shoot past this "zapper," they grab onto negatively charged ions floating in the air created by the field. Result: The powder becomes negatively charged.

• The "Rubbing" Way (Tribo Charging): Instead of zapping it, this gun has special tubes inside (often made of materials like Teflon). As the powder is blasted through these tubes at high speed, the particles rub against the tube walls. This friction literally knocks electrons off the powder particles. Result: The powder becomes positively charged (because it lost negative electrons).

• The dry powder gets fed into a special spray gun.

• Inside the gun, something crucial happens: the powder particles get electrically charged.

• There are two main ways to do this:

2. The Part Gets Grounded (The Other Half of the Attraction):

• Meanwhile, the metal part (or conductive surface) you want to coat is hanging on a hook or conveyor.

• That hook/conveyor is electrically grounded. Think of "ground" as the Earth – it's a giant reservoir that can absorb or supply electrons. Connecting the part to ground makes it want to be electrically neutral.

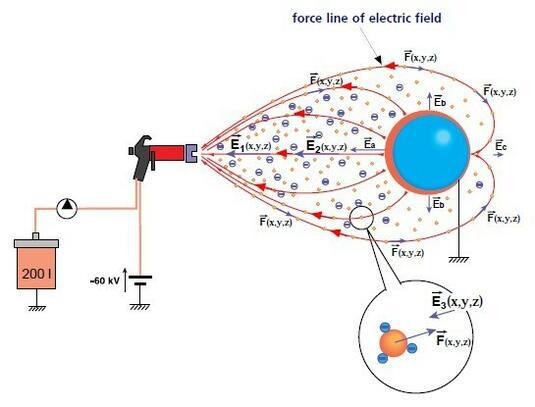

3. The Big Attraction (Powder Meets Part):

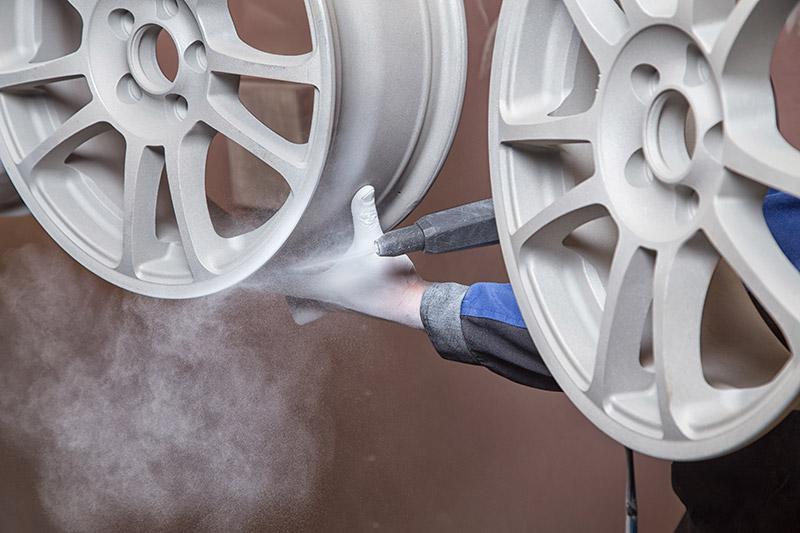

• The charged powder particles are blown out of the gun towards the grounded part.

• Here's the key: Opposite charges attract. If the powder is negatively charged (like from the Corona gun), it’s powerfully drawn towards the positively "leaning" grounded part. If the powder is positively charged (like from the Tribo gun), it’s powerfully drawn towards the negatively "leaning" grounded part.

• Boom! The charged powder particles literally fly to the part and cling tightly to its surface, pulled by that electrostatic attraction. It’s like the part becomes a magnet for the powder.

4. Why It Sticks (Even Before Baking):

• You can handle the part carefully after spraying (moving it to the oven) without the powder just falling off.

• You can spray complex shapes – the charge helps pull the powder onto edges and even into some recesses (though deep holes can be tricky – that's where Tribo charging often shines).

• Bonus! Powder that misses the part (overspray) is also charged. Sophisticated systems use collectors to suck this overspray up. Because it's still clean, dry, and charged, it can often be filtered and fed right back into the gun for reuse. Major efficiency win!

• That electrostatic cling is surprisingly strong! It holds the dry powder firmly in place on the part. This means:

5. The Transformation: Heat Makes it Permanent (Curing):

• So now you have this perfectly coated part covered in electrostatically clinging powder. But it's still just powder – rub it hard and it comes off.

• Enter the Oven: The coated part goes into a curing oven.

• Heat Works its Magic: Inside the oven (typically 160-200°C / 320-390°F), the powder particles melt. Remember, this "powder" is basically finely ground plastic resin mixed with color pigments and additives.

• Liquid Stage: As the particles melt, they flow together into a smooth, continuous liquid film covering the part.

• Chemical Reaction (Curing/Crosslinking): Heat also triggers a chemical reaction within the melted powder. Special ingredients called "hardeners" or "curing agents" activate. These chemicals cause the long chains of plastic molecules to permanently link together (crosslink), forming a tough, solid network. Think of it like baking a cake – the liquid batter transforms into a solid structure.

• Cool Down: After the right amount of time in the oven (ensuring full melting and chemical reaction), the part comes out and cools. What you have now is a hard, durable, chemically bonded plastic coating firmly attached to the metal.

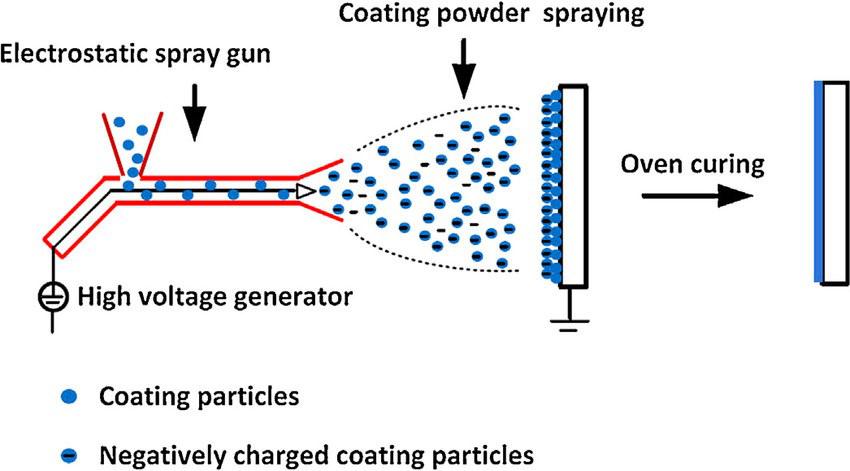

In a Nutshell:

1. Charge the Powder: Zap it (Corona) or Rub it (Tribo) to give it an electrical charge.

2. Ground the Part: Make the metal "hungry" for the opposite charge.

3. Spray & Attract: Blow charged powder at the grounded part – static electricity makes them stick like magic!

4. Melt & Bond: Bake it! The powder melts, flows smooth, and chemically cures into one tough skin.

5. Cool & Done: You've got an incredibly durable, attractive, and environmentally friendly finish.

It's that clever use of static electricity – making opposites attract – that allows powder coating to be so efficient, waste so little, and create such tough finishes. Experts like Ming Fan know exactly how to fine-tune the charging, spraying, and curing steps to get flawless results every time. Pretty neat, right?
